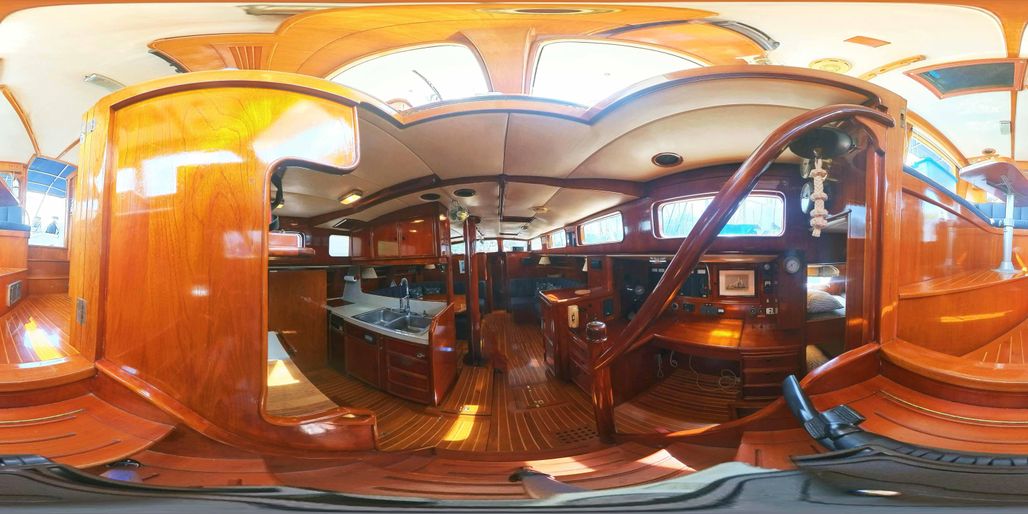

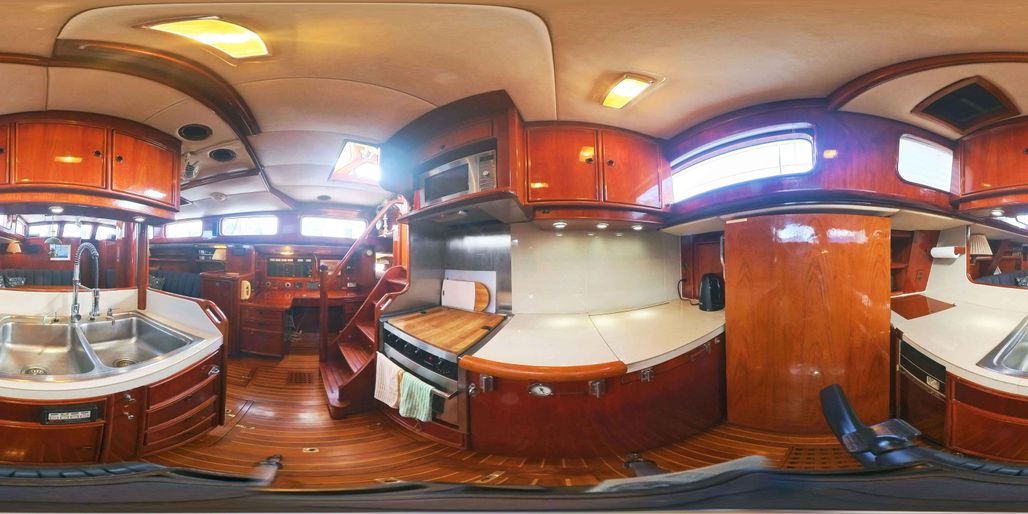

The galley features a large industrial type refrigerator and a huge below counter freezer. Both compressors are located in the engine room. Countertops are tiled (new 2021) and stove has a stainless steel splash back. Ample drawers and overhead cupboards separate the space from the saloon. 3 LED lights are built into the bottom of the overhead cupboards proving ample lighting over the sink and preparation area. The large, lighted stainless steel lined fridge is outboard. Shelves and vegetable baskets are stainless steel. The refrigerator is fitted with a digital internal thermostat. A removable butcher block cover sits atop the stove when not in use. A top opening storage space is accessed through the forward counter top. Automatic lights are built into the overhead cupboards, storage space and lower cupboards. A trash compactor is located underneath the forward countertop.

• BROAN 110 V compactor
• PANASONIC V genius microwave
• MOENn single lever tap, removable hand nozzle
• FORCE 10 four burner stove and oven. (new in 2017)
• XINTEX propane sensor and solenoid (with spare sensors)
• Overhead extraction fan
• Remote freezer thermometer.
• Deep stainless steel double sink
• Soap dispenser.
• Fresh and Saltwater foot pumps. (Saltwater disconnected.)

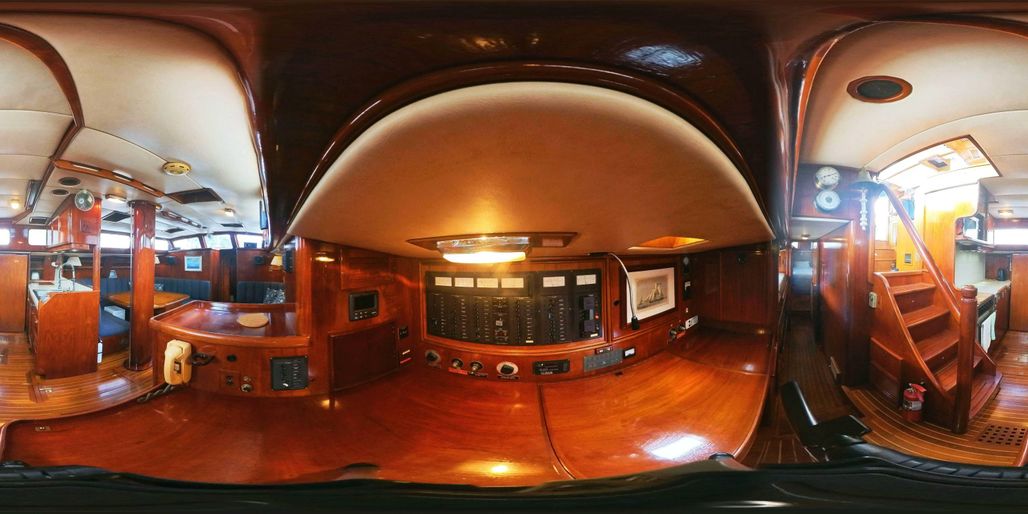

Opposite the galley to starboard is the navigation station / office.  Large varnished desktops, excellent lighting and overhead deck prism make this an excellent area to conduct ships business. Forward between the saloon settee and this space is a cabinet with two large sliding drawers holding the liquor locker and glass and table ware. Elegant and convenient. Beneath the forward desktop are three very deep sliding drawers with wood dividers and partitions. Ideal for those items that one uses frequently. The lowest drawer is a file cabinet holding all original manuals and ships paperwork. The chair sits beneath a top opening desk.  Next aft are 3 drawers and a slide out counter board. A weather fax folds out of the aftermost cabinet. Outboard is the main switch board with tank tender, hull potentiometer, battery switches and entertainment system.

• FURUNO RD-33 multifunction display
• PDQ wi-fi and router
• PIONEER Stereo system with 240 Watt amp, powering 10 speakers throughout yacht. Each space has local volume control.
• Airphone station
• ALDEN TR1 weatherfax and antenna tuner

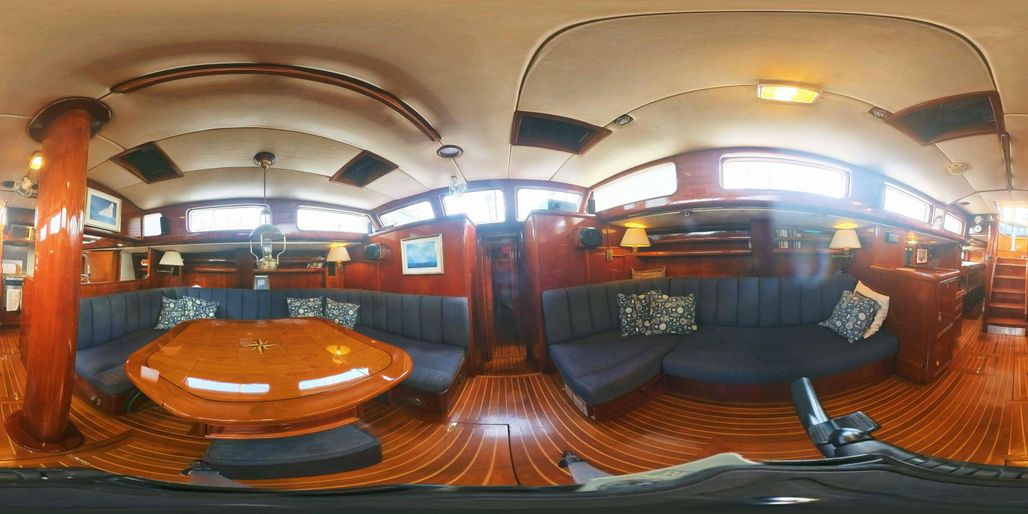

• 12V / 110V Flat screen TV in Saloon
• 110V RCA DVD and surround sound system (Saloon)
• Hull potentiometer.
• Hart Tank Tender.
• Battery switches
• Bass switchboard
• Chiming 6 inch Schatz Brass Clock
• Matching 6 inch Schatz Barometer
• 6 inch Brass Ships Bell

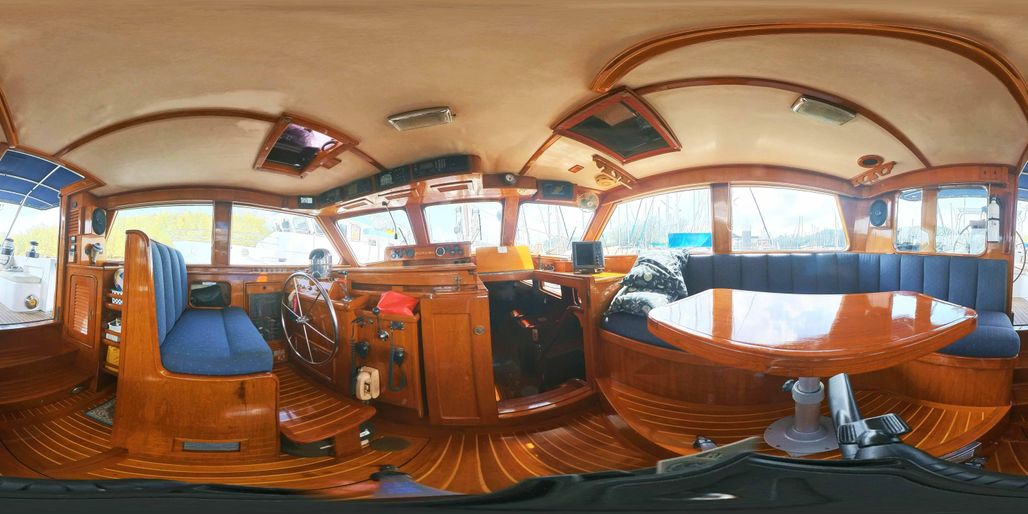

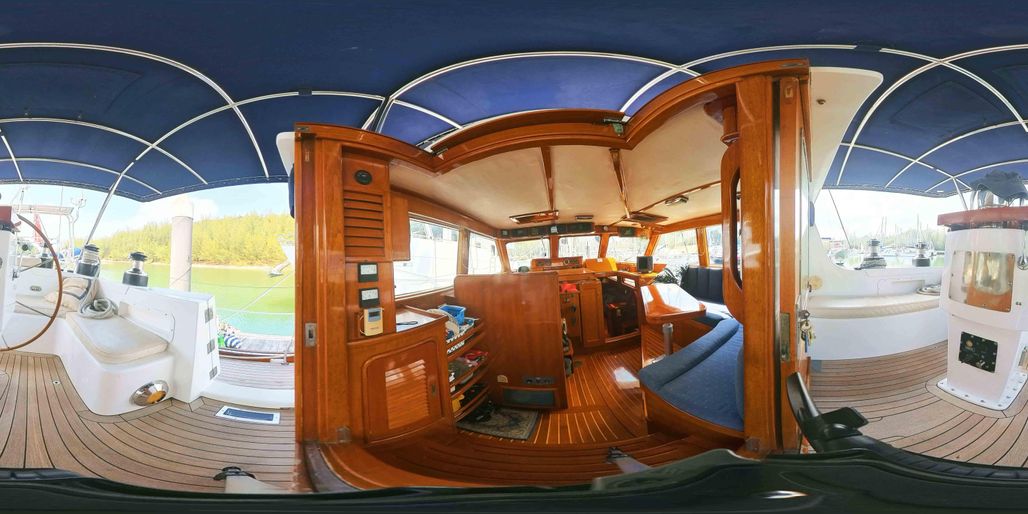

In the pilothouse:

• DANFORTH Constellation compass with stainless steel hood and light
• 240 Paper Charts covering Australia, NZ, SE Asia, Sth Pacific
• FURUNO 1835 closed array colour radar with ARPA and AIS tracking
• FURUNO chartplotter
• FURUNO Speed log and echo sounder
• FURUNO Autopilot Nav pilot 700
• B Class AIS
• FURUNO Fluxgate compass
• Independent (and secondary) rudder indicator
• KVH digital Gyro compass. (disconnected but operational)
• ICOM 802 HF
• ICOM 604 VHF
• FURUNO RD-33 Multifunction display
• SIMRAD DGPS linked to Chart Plotters
• Multi GPS inputs for both chartplotters
• Main Engine and Generator instruments
• Searchlight
• Loudhailer
• AIPHONE station
• Remote windlass controls
• Wipers with washers
• FIREBOY fire detection and extinguisher release.

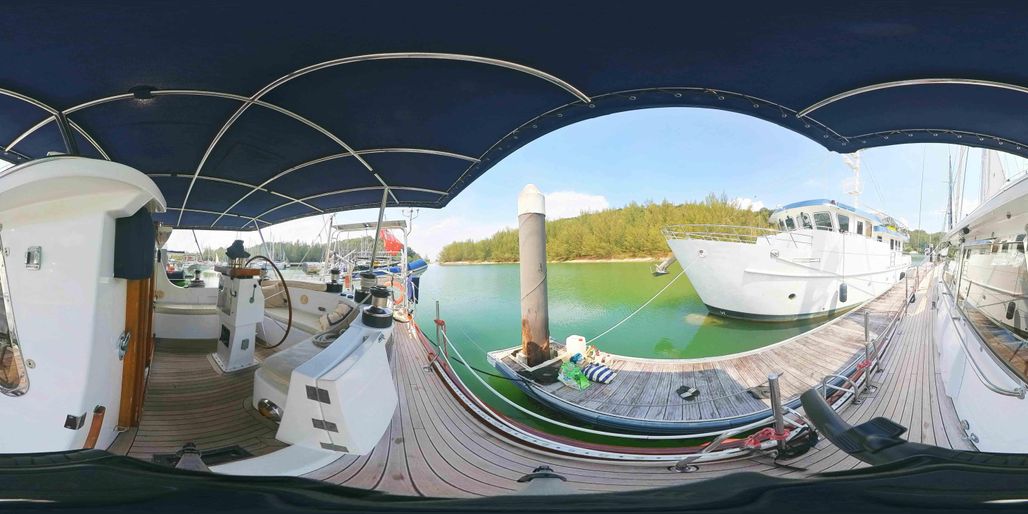

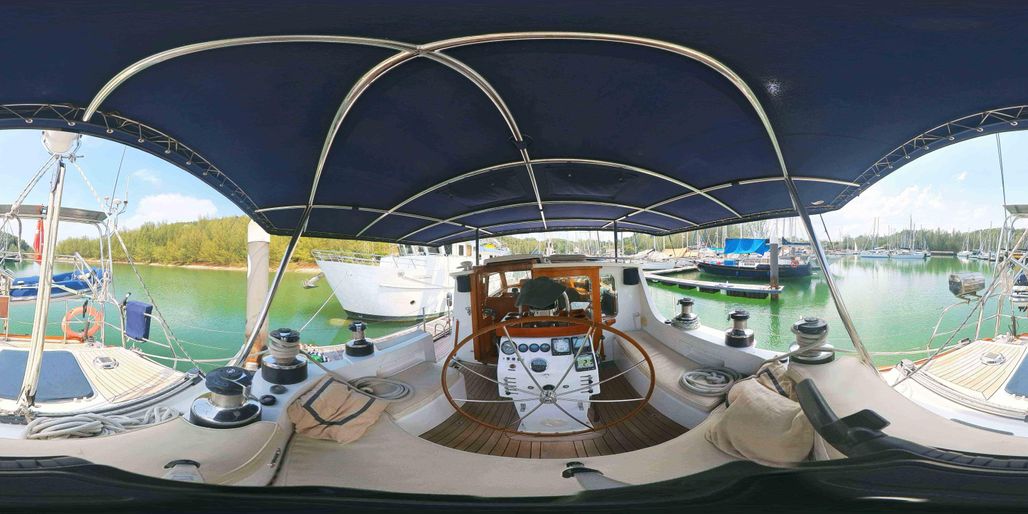

At the cockpit helm

• DANFORTH Constellation compass with stainless steel hood and light
• FURUNO Autopilot Navpilot 711 repeater/ control station
• Main Engine instruments
• FURUNO FI-502 wind instruments measuring true and app wind
• FURUNO FI-504 Multi function display
• ICOM VHF remote
• AIPHONE station
• Independent (and secondary) rudder indicator
• Search light control
• Remote windlass release for stern anchor
• All light and horn switches.
• Thruster control
• Get home control
• Roller furling and winch controls.
• NAVTEC back spring, boom vang and inner forestay pump and controls.

Kokomo is a displacement sloop with a moderately long fin keel and a rudder hung on a full skeg. The bow has a moderate overhang and the stern is a reverse transom with integral steps down to a swim platform. Her hull is hand laid fibreglass that is over 2 inches thick. Ballast is encapsulated in the fibreglass keel. The deck and superstructure are fibreglass Decks are overlaid with teak (new 2015). The pilothouse top has a moulded in diamond patterned non skid finish. The bottom has been painted in blue Micron 66 antifoul (2018) and the blue boot stripe, hull, superstructure, boom, mast and spreaders were painted in Awlgrip Snow white in 2015.

A wooden rubrail is capped with polished stainless steel and located about 18”below the deck to protect the hull from damage. A four inch high teak toe rail surrounds the main deck and is coated in semi gloss cetol. Three freeing ports are moulded into the caprail on each side. Closed chocks with stainless steel cleats are mounted forward and amidships. A stainless steel cruciform bit is located on the starboard quarter and a Maxwell Nilsson vertical hydraulic windlass with gypsy and capstan is located on the port quarter. Triple lifelines at 34” high run from pulpit to the boarding gates and then to pushpit. Stanchion bases are secured to the deck with stainless steel bolts threaded into inserts which were glassed into the hull/deck joint during construction to ensure a leak free environment and ease of removal.

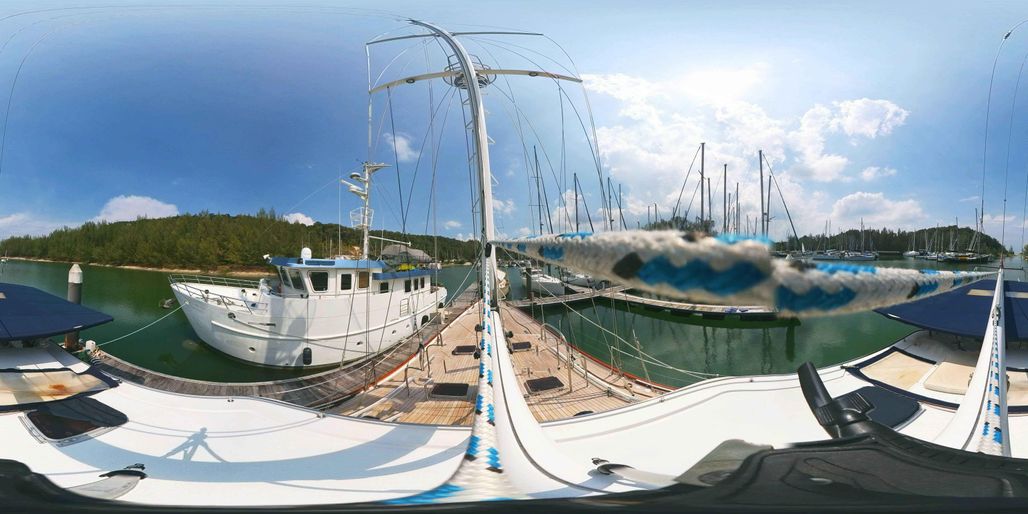

Starting at the bow a U shaped bowsprit / anchor platform extends approximately 4 feet forward of the stem. A teak foot rest at deck level and a teak seat at mid height allows one to stand or sit on the pulpit / bow sprit. Red and green LED steaming lights are attached to the upper rail of the pulpit rail. Two massive stainless steel anchor rollers are incorporated into the stemhead with the rollers themselves machined out of bronze. A Stainless steel pad eye protrudes from the waterline. Aft of the 5/8” chain stopper, a Maxwell Nilsson hydraulic windlass features dual gypsies and drum ends. One is fitted for the 5/8’chain and a secondary is fitted for ½”chain. Control of the windlass is locally or the pilothouse. A stainless bar protects the windlass from sheets. A fresh water outlet with quick disconnect is mounted on the starboard side to assist with anchor wash down.

Working aft, a large bow locker is found which houses the chain and bow thruster. The hatch lid is assisted by a gas shock for ease of opening and the frame is guttered with 2 overboard drains. Hinges are countersunk into the teak to provide pain free operation. Storage for fenders, hoses, lines and the lexan storm covers for all glass surfaces can be found here. This space is wired with 12V lighting and power and weatherproof 110V. The staysail stay is mounted here. This is detachable should one wish to do so. It is stowed on the starboard side clear of the fore deck.

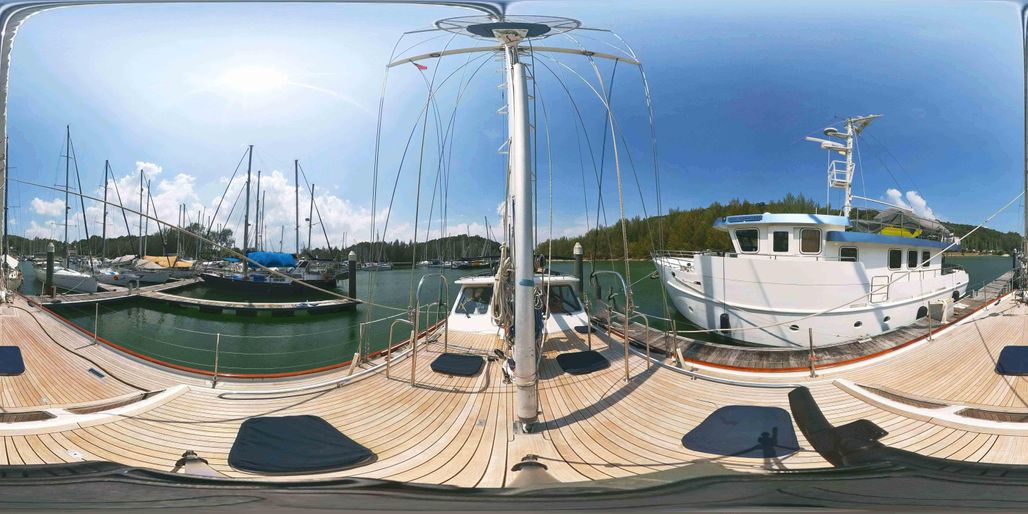

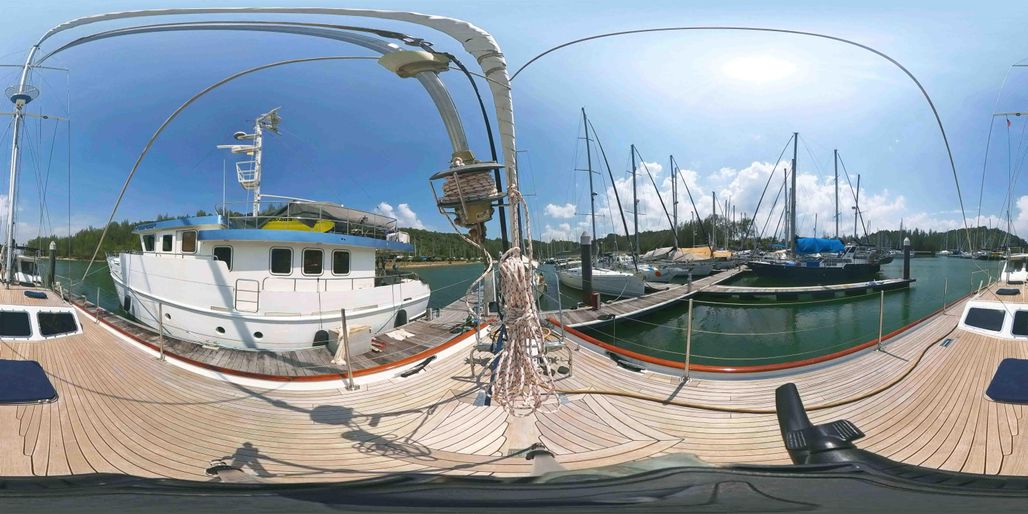

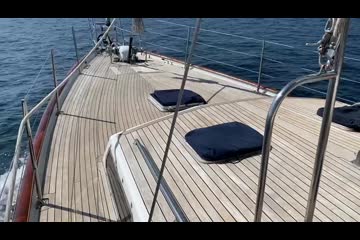

Despite a large hatch for the forward cabin, the foredeck space is large and free of obstructions, a perfect spot to set up a table and chairs for alfresco dining. A raised coach roof extends from five feet forward of the mast to the pilothouse. The structure is 28”high, an ideal height for sitting, yet easy to climb on. At night, coach house and pilot house LED courtesy lights provide illumination for safety and to highlight the vessel whilst at anchor. “Granny bars” are mounted each side of the mast while stainless hand rails run the length of the coach house and pilot house. There are 5 opening hatches mounted on the coach house roof. A smaller one has been installed above the galley to increase airflow during tropical passages. Large 8mm thick laminated safety glass windows are secured by stainless steel frames in the coach roof sides to provide light and visibility to the saloon and after cabin. All windows were removed and re-bedded in the 2015 lay-up. There are no leaks. Stainless threaded inserts are provided to mount the lexan covers should one decide to round the Horn.

Clearly, the most prominent feature of Kokomo is the raised pilothouse. Wide decks allow easy access on deck via either side of the pilot house. The solid stainless grab rails are at waist height. The pilothouse roof is impressive in design and construction. The side overhangs are only outdone by the forward overhang which forms a visor and an attachment for the serious Buell Air horn. This well cambered top has a moulded non slip surface and a stainless grab rail. Aft of the pilothouse is the comfortable cockpit. This is protected from the elements by a heavy duty bimini that has withstood 50 plus knot winds. Cambered to ensure drainage and made of stainless, it enhances the lines of the boat while providing protection. A clear dodger can be attached to the bimini if needed. The cockpit is accessed through either a side door on the port side, or a moulded step on the starboard coaming. The cockpit provides great safety and protection in heavy weather. The steering pedestal is complete with all controls and systems to run the yacht, including 12 and 110 V power. (220 V is available on board) All sail controls are mounted in this space. A (new) leather covered 48”stainless destroyer wheel can be removed and stowed, providing sufficient space for the day bed. A custom teak drink holder mounts to the pedestal when entertaining. The Mainsheet traveller and large hatch and two solar fans are mounted on the raised trunk cabin aft. This is at the same level as the coach house, giving smooth lines to the yacht.

A large lazarette occupies the space between the transom and the after bulkhead. The hatch is guttered with 2 drains and has a gas shock to assist in opening. Below is the dedicated propane locker, fitted with solenoids and aa new alarm sensor. This space is lighted and has 110V AC and 12 V DC power. The locker has a mount for the outboard and a large danforth anchor is mounted securely inside. Access to the after chain locker rode is through this space.

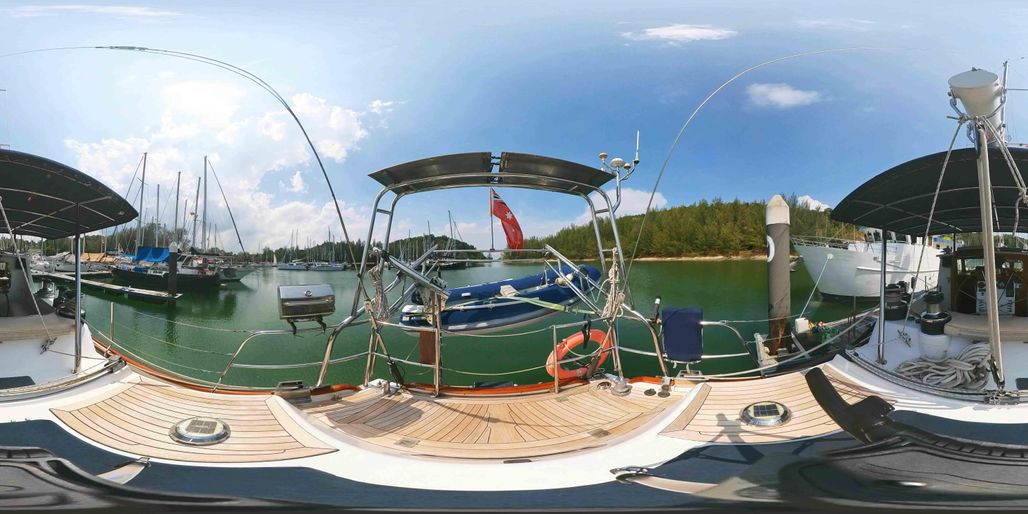

A transom mounted stainless steel swivelling electric crane is situated so that heavy items like the outboard can be lifted from the dock or dinghy and swung easily into the locker through the boarding gate in the stern rail. This crane is fitted with new bearings and will not seize.

On the port quarter, a self deploying, fold away stern anchor housing is mounted and can be deployed locally or from the steering position in the cockpit. Moulded in teak capped steps lead to the swim platform. A hot and cold water shower attachment is located between the steps on the transom. A 2 inch stainless steel solar panel platform is welded to the substantial dinghy davits. The dinghy blocks are harken and the lines pass through spinlock stoppers. The solar panel array is also the mounting point for an antenna cluster, keeping all antennas away from possible damage. Mounted on the teak and stainless swim platform is a folding stainless ladder with teak steps that extends almost 8 feet into the water, making easy entry and egress for divers as well as swimmers. There is a stern mounted docking light. The davits have 2 LED courtesy lights mounted in them that provide illumination when returning from ashore at night.

• (10) Stainless steel opening ports with stainless steel deadlights.
• Stainless steel and teak swim platform
• Fold down Stainless steel and teak swim ladder
• Docking light recessed into platform
• Recessed steps moulded into transom with teak steps
• Transom shower with hot and cold fresh water
• Maxwell Nilsson H 3000 hydraulic windlass with dual gypsies and drum ends
• 50KG Bruce anchor with new swivel.
• 400 feet 5/8”chain forward
• Anchor snubber lines and hook.
• 90 lb Danforth anchor
• 20M X 12mm chain and 150 feet rode aft (new chain 2020)
• 35 KG Bruce stern anchor
• Maxwell Nilsson H700 vertical windlass and drum
• Large diameter wash down hose and nozzle
• Stainless steel midship boarding ladder with teak treads.
• 2 sets jack lines
• 2 safety harnesses
• Bosun’s chair
• 2 Stainless steel quick disconnect fresh water connections on deck
• Stainless steel dinghy davits and solar panel
• 4 glass deck prisms
• Stainless steel crane mounted with Rule 3300lb 12 V motor.
• Magma propane grill (new) with quick disconnect to propane system
• Covers for winches, toe rails, forward seat, hatches, winches, horn, pedestal, steps, dinghy, live sling and wheel.
• Main deck awning.
• White vinyl cockpit cushions.
• Windscoop for hatches.

KOKOMO is a gentleman’s yacht designed to be sailed from the cockpit by one person. Her low aspect cutter rig employs HOOD hydraulic stowaway mainsail, hydraulic furling genoa, and fixed furler on the staysail. Five hydraulically powered winches control lines led aft to the cockpit will allow even the smallest member of the crew to singlehand this yacht. The sum of parts is definitely pushbutton sailing at its best. While capable of sailing fine to windward, the 165hp engine and 630 gallons of fuel will allow sensible motoring when required.

Sail area is 1300 sq feet. The rig is supported by 12mm and 10mm 1 X 19 stainless steel continuous wire rope with fore and aft lowers, single continuous upper cap shrouds. There are twin backstays with outboard chainplates allowing access to the transom steps. (Rigging new in 2019) A NAVTEC hydraulic pump, gauge and selector are mounted on the steering pedestal and tension hydraulic backstays, boom vang and staysail stay. The staysail stay is easily removed for inshore sailing by releasing the hydraulic ram.

• ZOOM in mast furling mainsail (2023)
• ZOOM 135% genoa (2023)
• DOBSON yankee
• As new gennaker.
• Spare mainsail
• Storm trysail and independent mast track plus storm sail.
• HOOD stowaway 12”x 7”mast with hydraulic in mast furling mainsail, double spreader, keel stepped, painted snow white AWLGRIP.
• Fixed mast steps from deck to crowsnest at first spreader.
• Masthead windex wind direction finder.
• 2 deck lights mounted on lower spreader
• 2 signal halyards with swivelling flag clips.
• 3 LEWMAR 40 self tailing halyard winches on mast
• 1 LEWMAR 46 self tailing halyard winch on mast
• Stainless steel crow’s nest platform / radar guard.
• Remote control stainless steel searchlight.
• Port and starboard spinnaker halyards
• Mast mounted Forespar telescoping whisker pole with topping lift and inboard lift.
• Aluminium 8”x 5”boom painted snow white Awlgrip
• PROFURL headstay furling with Lewmar hydraulic furler
• PROFURL staysail furler.
• 1 hydraulic LEWMAR 55 self tailing halyard winch in cockpit for halyards.
• Stay sail furling line, Starboard spinnaker halyard, topping lift and main sail haulout line run along starboard side of pilot house through LEWMAR sheet stoppers to powered winch.
• 2 x LEWMAR 65 hydraulic self tailing primary winches on port and starboard side of cockpit.
• 1 x LEWMAR 55 hydraulic self tailing winch for main sheet on centre aft cockpit
• 2 x LEWMAR self tailing secondary winches for staysail sheets port and starboard of cockpit.
• LEWMAR “T”shaped aluminium tracks for adjustable genoa lead cars on caprail
• LEWMAR “T”shaped aluminium tracks for adjustable staysail lead cars outboard of coach house.
• 4 MERRIMAN opening sheet adjustable lead cars.
• LEWMAR 4:1 mainsheet and LEWMAR mainsheet 4:1 traveller
• Blocks and tackles.

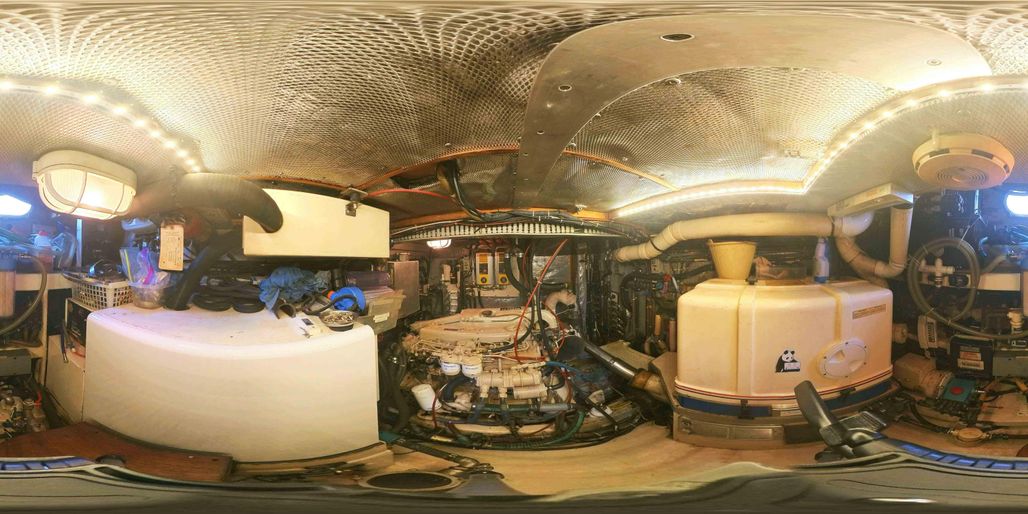

• PERKINS T6.3544M turbocharged diesel with 6200 hours. (Completed 6000 hrs service by Perkins)
• HURTH HSW 630A1 transmission
• CENTRAFLEX CF-AGM -80 flexible shaft coupling
• PYI mechanical Dripless shaft seal (New 2021)
• 2 “Stainless Steel propeller shaft
• 25”x 18”right hand three blade Maxprop
• MORSE cable controls from wheel house and cockpit
• Full engine instrumentation at cockpit and in wheel house
• Cooling water “no flow” alarms on main engine and generator
• KEY POWER 12.5 hp bow thrusters with dual controls.

Systems design and installation is set up for comfortable and reliable world cruising. The systems are more reminiscent of ships rather than a yacht. The reliable PERKINS powers the vessel to a comfortable 8 knots giving a range of well over 1700 miles and 2000 can be exceeded with a lower speed. Coupled to the main engine gearbox is a hydraulic “get home” package that will power Kokomo to about 4.5 knots if required. This is powered independently from the ONAN 12 kw generator. The main engine powers a large hydraulic pump for the 2 windlasses (one for’d and one aft on stern anchor) as well as the KEYPOWER 25hp bow thruster. The main engine also powers a large emergency bilge pump.

The hydraulic windlasses may also be run by an independent electrically driven pump should you desire not to start the main engine and slip quietly from an anchorage.

The second generator is a 6kw FISCHER PANDA.

The 400 gallons of fresh water is supplemented with a 700 gallon per day watermaker. Laundry and showers pose no threats to your cruising pleasure.

• LEWMAR Commander hydraulic pump for winches (5) and roller furling on main and genoa
• NAVTEC hydraulics for back stay, inner forestay, boom vang. All rams rebuilt 2023/2024
• 2 X 12V hydraulic pump for winches.
• ONAN genset for get home system.
• Engine driven hydraulic pump for bow thrusters and windlasses.
• Stainless steel tank with temperature sight glass.
• Dual control station WAGNER hydraulic steering system.
• 2 X ACCUSTEER hydraulic pumps.

• 2 x 40” membranes, driven by HRO pumps, producing 700 gal/day.
• 2 x GROCO Paragon Senior Fresh Water pumps.
• All pumps are secured on anti vibration mounts.
• GROCO accumulator tank. (new 2019)
• CITY connection Shore spigot and regulator.
• ISOTEMP stainless steel 12 gallon hot water heater with 1125W and 4500W heating elements.
• Fresh water wash down spigots with quick disconnects for’d and aft.

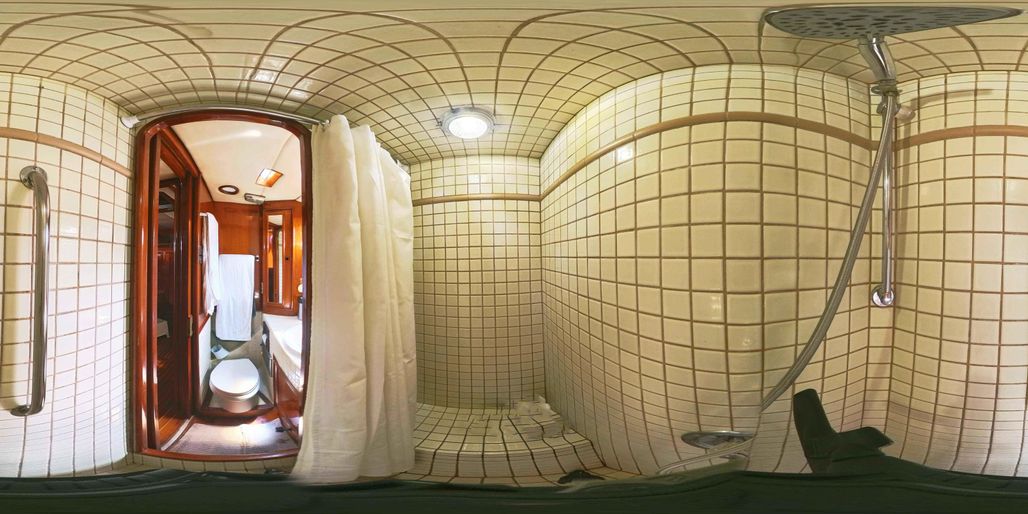

• Hot and cold shower at swim platform.
• 50 gallon grey holding tank with macerator pump and deck pump out.
• 85 gallon black holding tank with macerator pump and deck pump out.

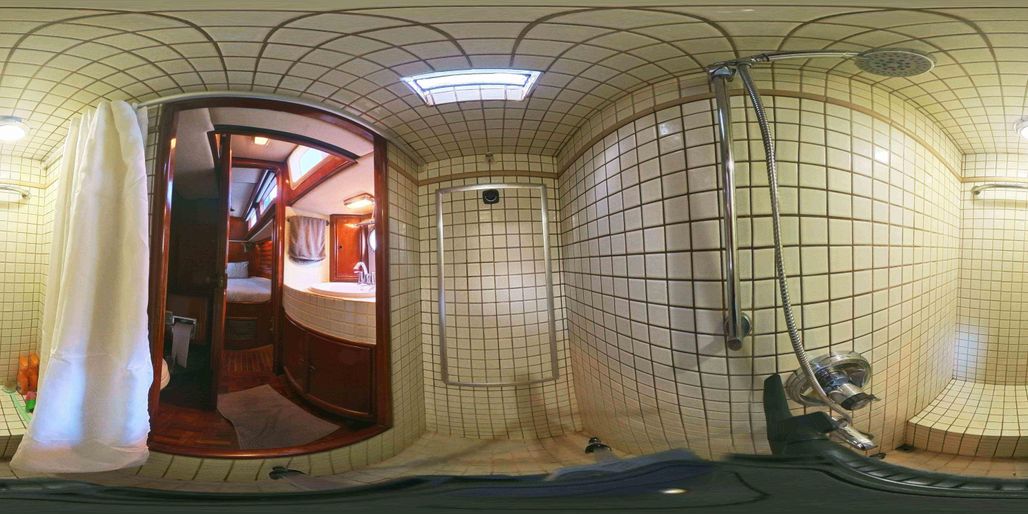

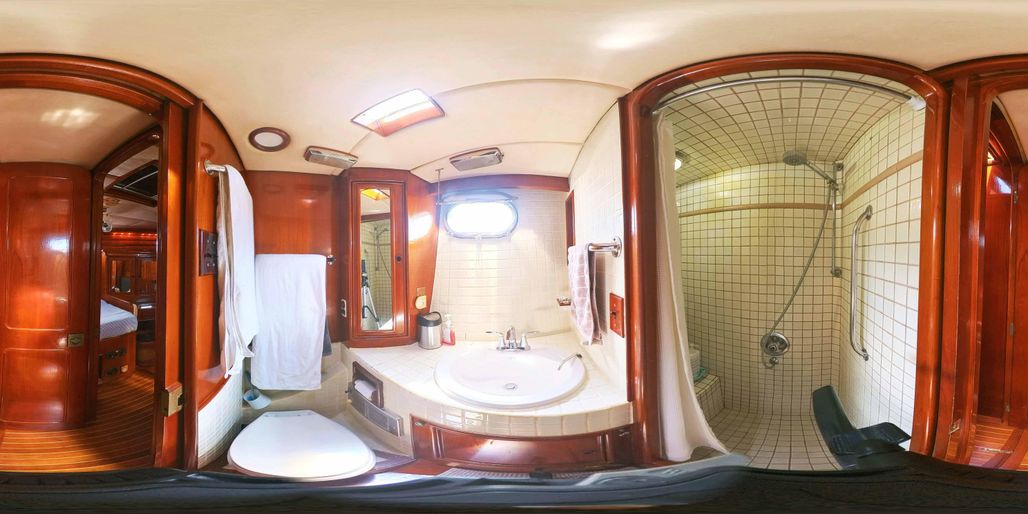

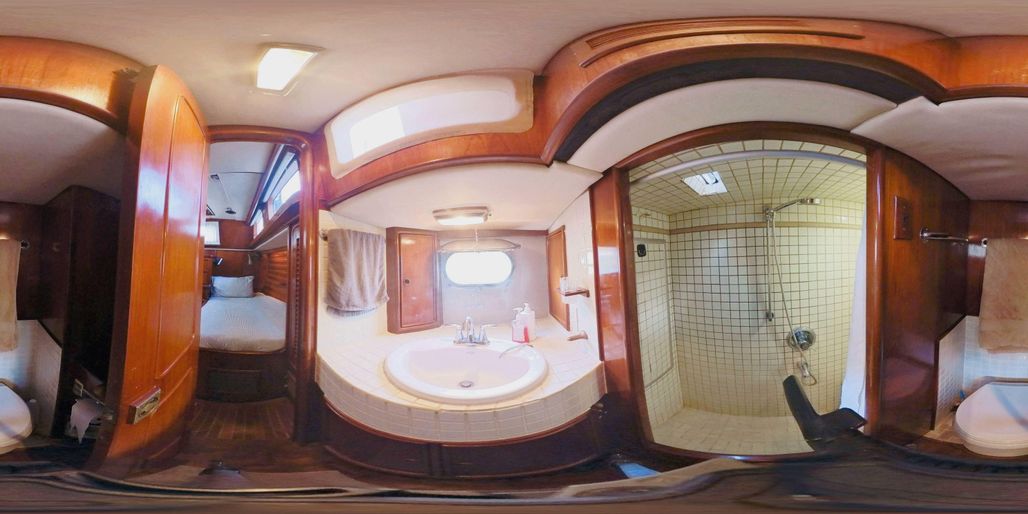

• 2 x JABSCO electric marine heads with freshwater flush.
• Tank Tender level indicator for all tanks.

• 630 gallons of fuel in 4 tanks. 3 Stainless, and one aluminium day tank (30 gal) situated above the engine for gravity feed.
• 2 x 2 micron RACOR 100MA filters with changeover valve and vacuum gauge.
• Fuel manifold with 12v JABSCO 5 gal/ min transfer pump.
• Manual hand pump for transfer if needed.
• Independent Fuel tank sludge removal pump manifold for all 4 tanks.
• Independent RACOR filter for 2nd generator.
• Lube oil change pump for all 3 diesels.

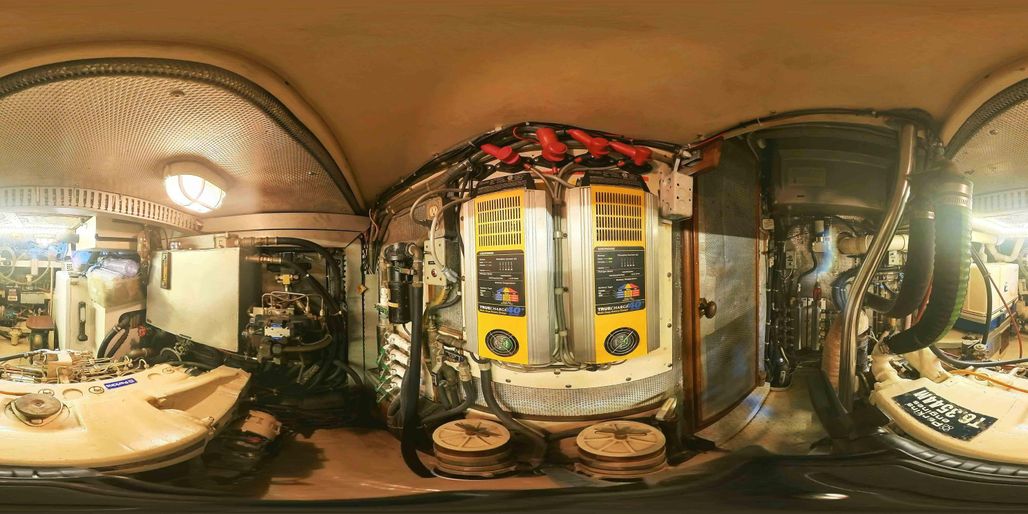

• ONAN 12KW 120/240 AC genset in sound shield with 1800 hours
• FISCHER PANDA 6 Kw 120/240 genset in sound shield with integrated 250 Amp charger. 1000 hours
• 220 V outlet located under nav desk
• BASS breaker switch panel at nav station
• DC sub panels at forward cabin, nav station, aft cabin and pilothouse
• (8) 8D batteries, 2 for starting and 6 for house. (New 2020)
• LINK 10 battery monitor (pilothouse)
• High battery voltage alarm
• Battery isolation switches at nav station
• TRACE 2 kw inverter and 120 amp charger
• 110 amp alternator on Main engine with auto Mac-II regulator controller in pilothouse
• 4 x 50 watt solar panels mounted on dedicated surface above the tender davits.
• WESTINGHOUSE Isolation Transformer (12 KVA)
• 1 X 75’+ 1 x 50’ 50 amp shore cables
• SMART PLUG ship connection
• 2 x 40 amp TRUCHARGE battery chargers
• XANTREX 60 amp charger for house bank (2023)
• Hull protection stray current monitor
• Deck courtesy lights and deck lights
• LED steaming Nav lights
• Nav, anchor light and strobe light on masthead
• 2 ammeters for LEWMAR electric motors
• 9 electrical heaters
• 4 AIR MARINE reverse cycle air conditioning units totalling 40,000 BTU
• 5 Guest fans.

• 6 man liferaft
• 6 inflatable lifejackets
• Flares
• Fire extinguishers in each space
• Portable fire extinguishers in each space
• Hard wired fire alarm
• Manual and auto release Halon system for machinery space
• Carbon monoxide detector
• XINTEX propane solenoid and alarm
• Varnished Teak and stainless steel emergency steering tiller with hydraulic by pass
• Hard wired smoke detectors throughout
• EPIRB

• 3.2m HIGHFIELD RIB with tube covers (2023)
• TOHATSU 9.8hp

• 2 x 9Kg fibreglass propane bottles in dedicated propane locker off lazerette
• LPG spigot on deck with quick disconnect for BBQ
• 4 air conditioning reverse heating units totalling 40,000 BTU’s
• 1 x DANFOSS 12VDC refrigeration compressor for freezer
• 1 x DANFOSS 12VDC & 120/240 VAC compressor for refrigerator
• Windshield wipers and water washers for pilot house
• BUELL Air horn and compressor (New)
• Substantial spares
• Canvas covers for entire boat
